PostgreSQL Auto-Clustering
Data plays a crucial role in most applications and should remain accessible to end users in a dynamic environment. Storing all your data in one place is risky if the system fails.
To ensure high availability, it is essential to implement a strategy that maintains data across multiple synchronized servers.
Replicating your data across multiple databases helps mitigate system failures.
It also boosts productivity, enables efficient backup processes, and allows for data analysis without degrading performance
AccuWeb.Cloud provides PostgreSQL with master-slave asynchronous replication using certified templates among its range of database clustering solutions. By default, it deploys two database containers, one for each role—Master and Slave.
The primary (master) server hosts an active instance of the database and handles read-write operations, while the standby (slave) server maintains a copy of the active database and manages read-only operations.
If the primary database fails due to container issues or database corruption, the slave server (operating in a separate container) must be promoted to master to retain writes and ensure database availability.
In the cluster topology, each database container is configured with default vertical scaling, ranging from 1 reserved cloudlet to 32 dynamic cloudlets (up to 4 GiB of RAM and 6.4 GHz of CPU), which are allocated dynamically based on incoming load. You can adjust the resource allocation limit by following the linked guide.
The Database Cluster can be installed automatically through the following methods:
In this tutorial, we will delve into both methods.
Installing a PostgreSQL Cluster from the Marketplace
You can easily locate the PostgreSQL Master-Slave Cluster package in the Marketplace.
Modify the database version, environment name, and destination region as needed within the installation window.
PostgreSQL Automatic Clustering Mode
In AccuWeb.Cloud, enabling auto-clustering is made simple with a dedicated switch designed to streamline the clustering process.
To activate it, access the topology wizard in the dashboard, select your software stack (e.g., PostgreSQL 15), and toggle the Auto-Clustering switch to the on position.
Cluster Topology

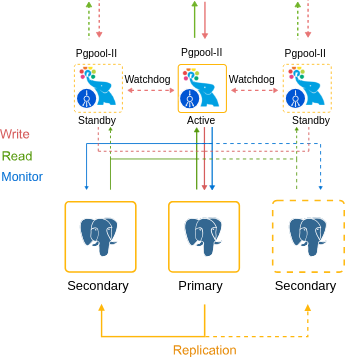

The database cluster topology resulting from both deployments is depicted as follows:
Once the database cluster installation is finished, you will receive a confirmation message containing the master node URL and database access credentials. Additionally, this information will be sent to you via email for your records.
Now, let’s activate the master database to verify the successful replication of data to the slave.
Testing PostgreSQL Database Replication Functionality
To verify proper data replication, we will create a new database instance in the master container and confirm its presence in the slave.
Create a New Database
Step 1. Click on “Open in Browser” next to the PostgreSQL Master node to access the phpPgAdmin web interface.
Step 2. Navigate to Servers, select PostgreSQL, and log in using the credentials provided during cluster installation.
Step 3. Select “Create database” from the menu.
Step 4. Enter a name in the Name box (e.g., test) and click on the Create button.
Now that the database is created on the master node, let’s verify the replicated data on the slave node.
Check the Replication
Step 1. Open the phpPgAdmin web interface by clicking on “Open in Browser” next to the PostgreSQL Slave node.
Step 2. Log in to the admin interface using the same username and password that you used to access the master node
Once logged in, you’ll find the replicated database (e.g., test) visible.
Congratulations! Your PostgreSQL environment with master-slave asynchronous replication is now operational and ready for data processing.
Next, connect this PostgreSQL replicated database to your project. Follow the instructions below based on your application specifics:
Configure PostgreSQL Replication
